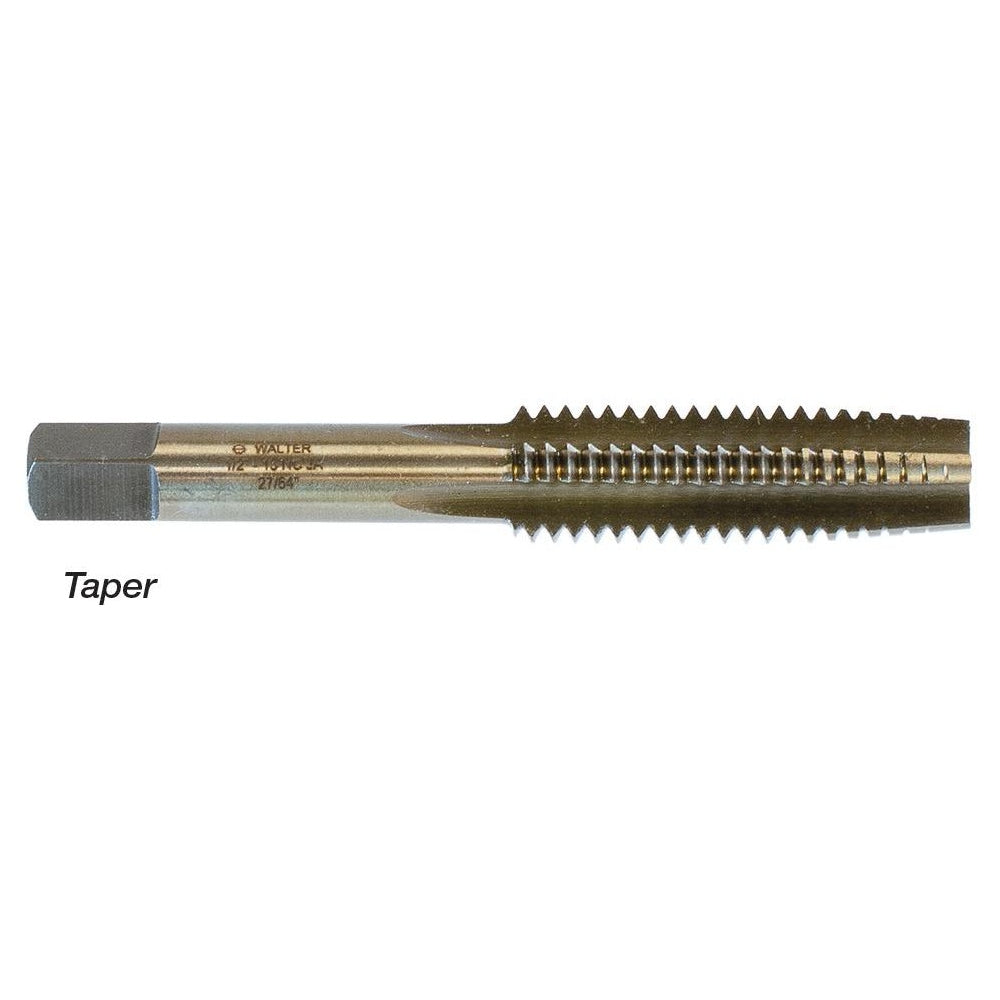

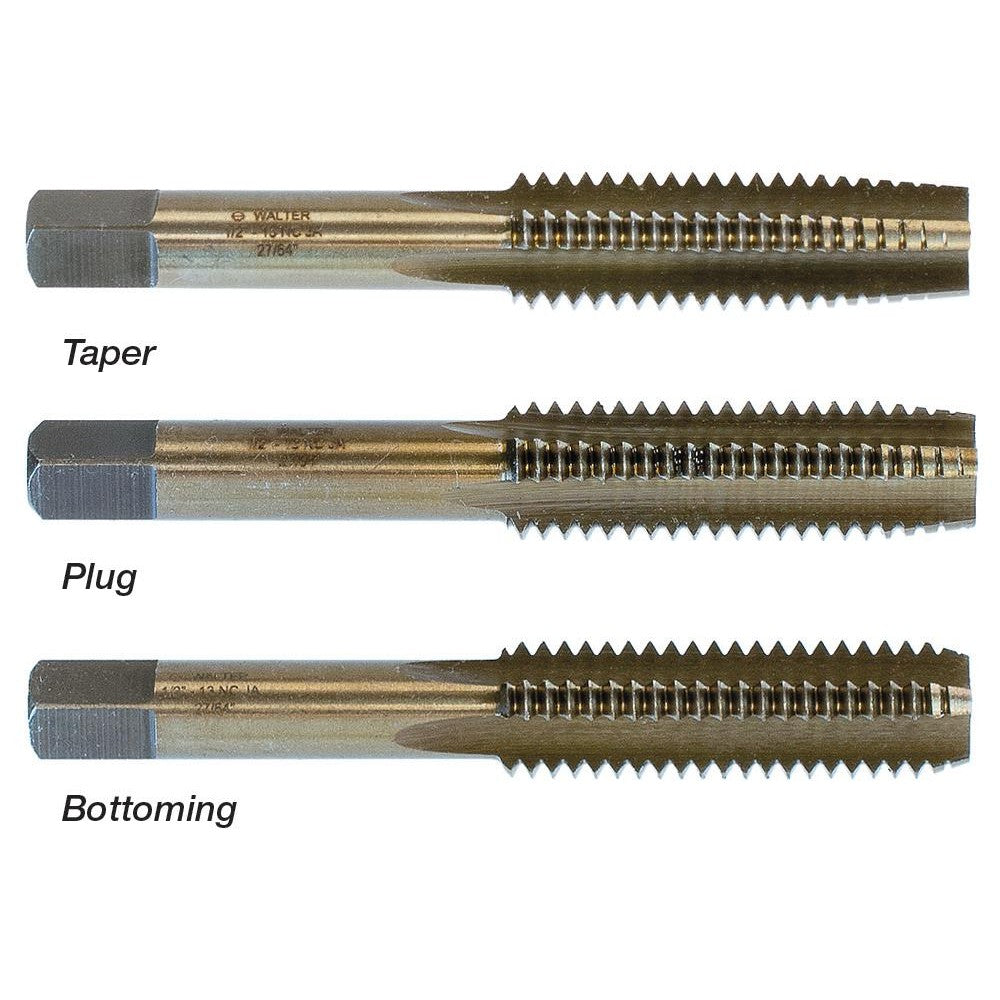

Walter SST+ HSS Taper Hand Taps

SKU: WAL03A104:EA In Stock
$9.46
Tap Size
Style
Description

Made from premium quality high speed steel with ground threads, hardened and tempered for longest life in a variety of materials.

Features:

  • Hardened and tempered for longest life
  • Precision ground threads for free cutting action
  • Premium quality HSS

Materials:

  • Aluminum
  • Mild steel
  • Stainless steel

Applications:

  • Cutting new threads in a variety of materials
  • Repairing damaged threads
  • Tapping through holes

Tips:

  • Make 1/4 turn back when torque is too high
  • Use Walter Tapcut lubricant for best results

Specifications:

Part Tap Size x Thread Per Inch Style Description Drill Size
03-A 061 6-32 NC Taper style Machine screw size #36
03-A 081 8-32 NC Taper style Machine screw size #29
03-A 101 10-24 NC Taper style Machine screw size #25
03-A 104 10-32 NF Taper style Machine screw size #21
03-A 121 12-24 NC Taper style Machine screw size #16

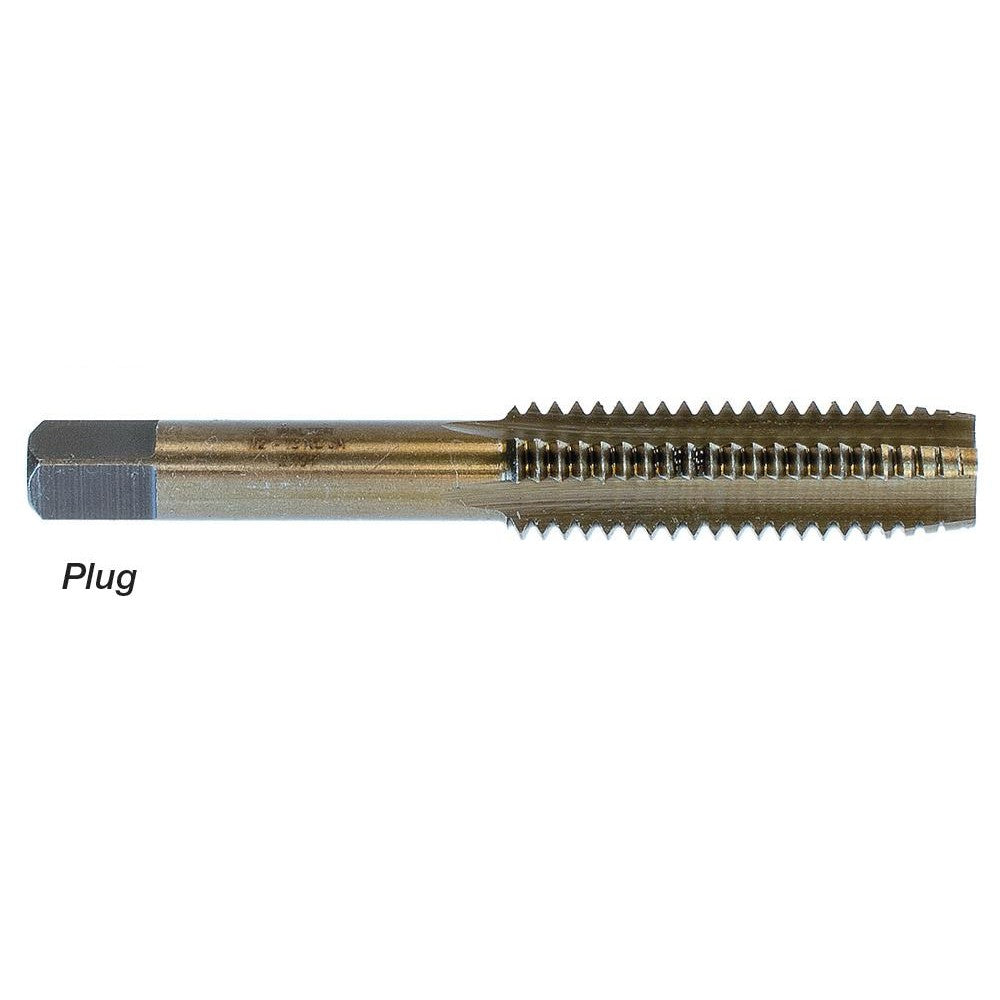

03-A 122 12-24 NC Plug style Machine screw size #16

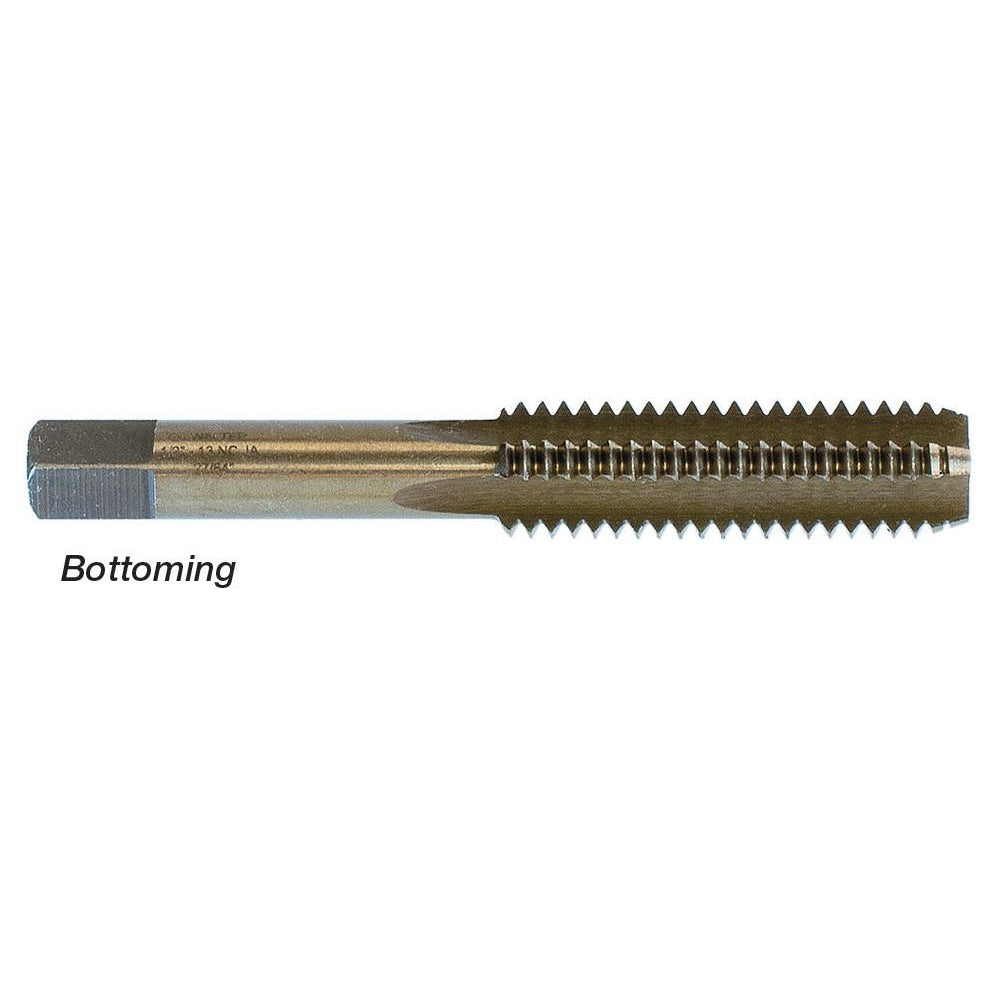

03-A 123 12-24 NC Bottoming style Machine screw size #16
03-B 041 1/4-20 NC Taper style Fractional size #7
03-B 044 1/4-28 NF Taper style Fractional size #3
03-B 046 1/4-28 NF Bottoming style Fractional size #3
03-B 051 5/16-18 NC Taper style Fractional size F
03-B 054 5/16-24 NF Taper style Fractional size 17/64
03-B 056 5/16-24 NF Bottoming style Fractional size 17/64
03-B 061 3/8-16 NC Taper style Fractional size 44697
03-B 063 3/8-16 NC Bottoming style Fractional size 44697
03-B 064 3/8-24 NF Taper style Fractional size 21/64
03-B 066 3/8-24 NF Bottoming style Fractional size 21/64
03-B 071 7/16-14 NC Taper style Fractional size U
03-B 073 7/16-14 NC Bottoming style Fractional size U
03-B 074 7/16-20 NF Taper style Fractional size 25/64
03-B 081 1/2-13 NC Taper style Fractional size 27/64
03-B 083 1/2-13 NC Bottoming style Fractional size 27/64
03-B 084 1/2-20 NF Taper style Fractional size 29/64
03-B 091 9/16-12 NC Taper style Fractional size 31/64
03-B 094 9/16-18 NF Taper style Fractional size 33/64
03-B 101 5/8-11 NC Taper style Fractional size 17/32
03-B 104 5/8-18 NF Taper style Fractional size 37/64
03-B 121 3/4-10 NC Taper style Fractional size 21/32
03-B 124 3/4-16 NF Taper style Fractional size 44881
03-B 141 7/8-9 NC Taper style Fractional size 49/64
03-B 144 7/8-14 NF Taper style Fractional size 13/16
03-B 161 1-8 NC Taper style Fractional size 44750

Metric Walter Hand Taps:

Item Style Tap Size x Pitch Drill Size
03D 041 Taper 4.0 x .70 mm #30
03D 061 Taper 6.0 x 1.00 mm #9
03D 081 Taper 8.0 x 1.25 mm 17/64
03D 101 Taper 10.0 x 1.50 mm 21/64
