#10 Structural / Construction Screws Round Head Torx (Self-Drive)

SKU: SS10200:EA In Stock
$0.21
Diameter
Length
Pack Size
Description

CONSTRUCTION SCREW
IDEAL FOR REPLACING LAG SCREWS

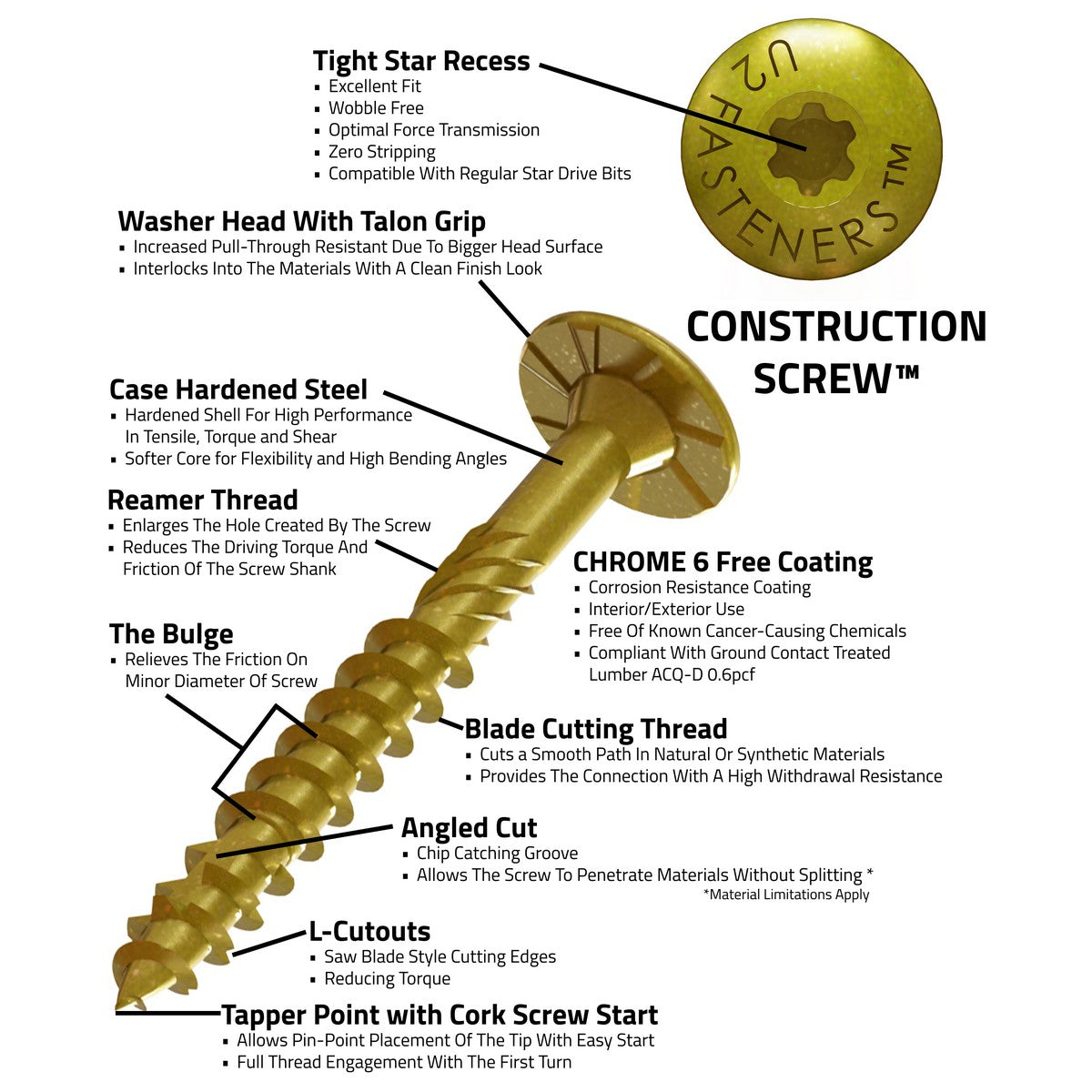

Self tapping construction screws that are replacing lag screws and is Structural & ACQ treated lumber compliant in IAPMO report ER-454. The Dome Head enhances the structural capability. The U2 CS has the essential features: the Tapper Point which consists of the Cork Screw Start, L-Cut outs and Blade Cutting Thread for easy piercing and alleviating strain on the material. The Tight Star Recess system is designed to grasp the U-Bit tightly and can be installed with one hand. Underneath the screw head of the U2 CS the Talon Grip holds the screw tight to prevent loosening and uses its nibs to dig into the material when countersunk. Below the smooth shank is the Reamer Thread, which enlarges the hole in the material to create a larger passage when drawing materials together and reduces tension on the screw head.

#10 screws take a T-25 U-Bit

Perfect for:

  • Professional timber construction
  • Staircases
  • Deck frames
  • Rafter
  • Trellis framing
  • Ledger boards
  • JoistsPlanter boxes
  • Post supports
  • Play-set structures
  • Retaining walls
  • Facade attachments
  • Laminated beams
  • SIP panels
  • Fencing
  • Pole barns
  • Concrete forms
  • And more!

Features:

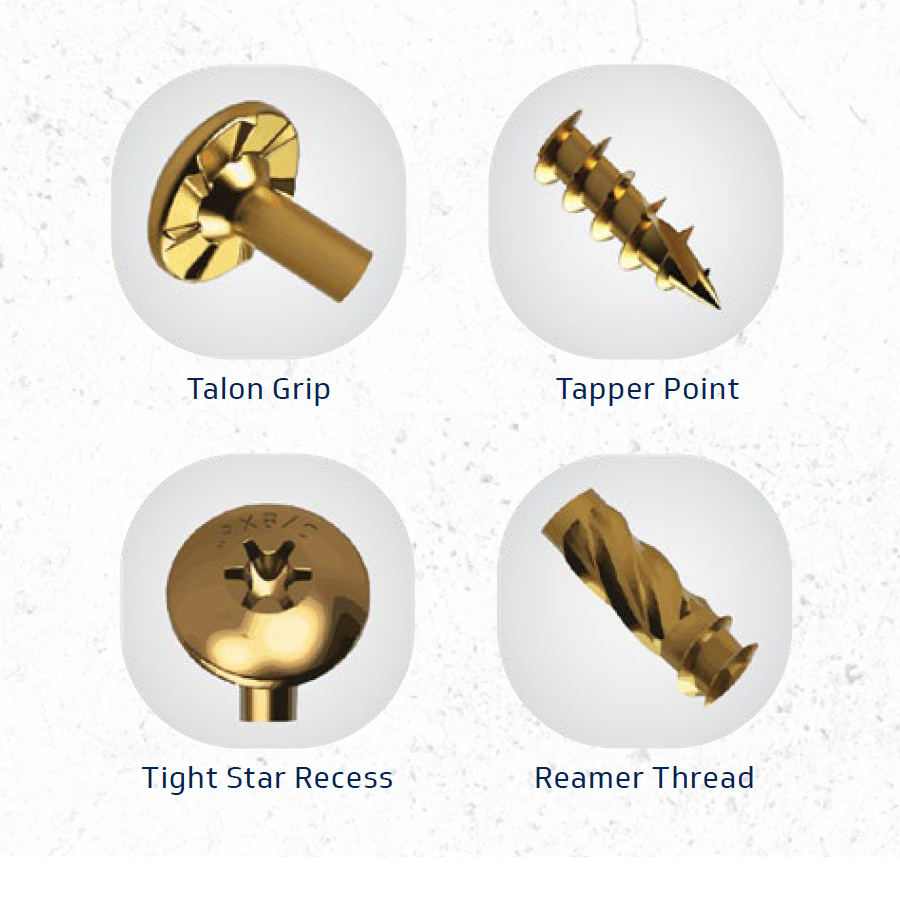

  • Dome Head with Talon Grip
    • The finished appearance of a conventional round head
    • Provides an extra-large bearing surface under the head
    • The Talon Grip ensures secure fastening, preventing loosening
  • Tight Star Recess System
    • Allows for one-handed installation
    • Grasps the U-Bit tightly for a secure fit
    • Ensures a wobble-free experience and optimal force transmission
  • Innovative Tapper Point
    • Consists of a Cork Screw Start, L-Cut outs, Angled Cut, and Blade Cutting Thread
    • Enables easy piercing and alleviates strain on the material during installation
  • Reamer Thread
    • Enlarges the hole in the material to create a larger passage when drawing materials together and reduces tension on the screw head

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
