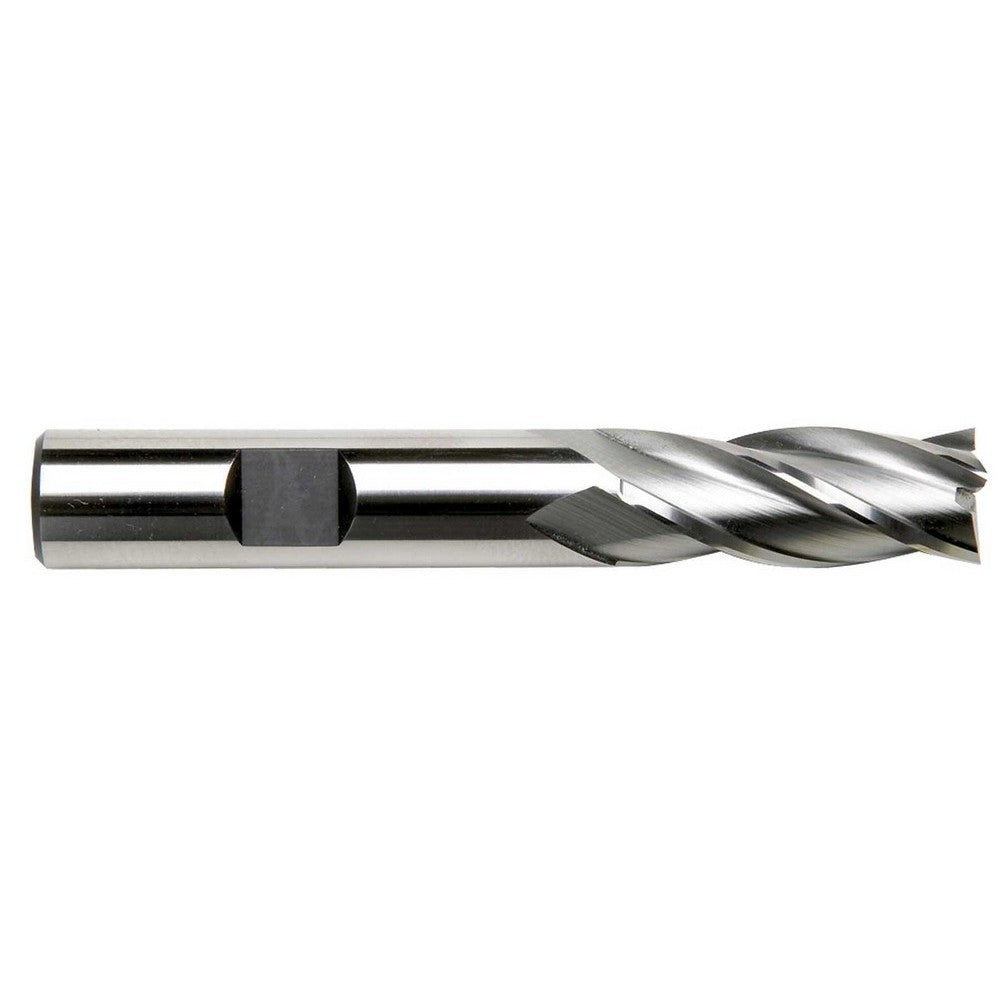

SOWA End Mills Multi-Flute Regular Length HSCO
Regular price
$24.20
Couldn't load pickup availability
Centre cutting allows these end mills to drill into the part for the beginning of a slot. These centre cutting end mills are recommended for pocketing, tracer milling, cam milling, die sinking and slotting.

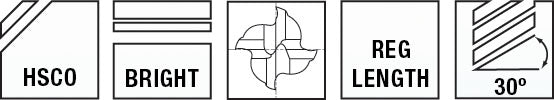

Features:
- Square end
- Centre cutting
- Weldon flat shank
- Made of Cobalt High Speed Steel
- Bright Finish
- 30° Helix Angle
Specifications:
| Part # | Cutting Diameter | Shank Diameter | Flute Length | Overall Length |
| 103-224 | 3/16" | 3/8" | 1/2" | 2-3/8" |
| 103-226 | 1/4" | 3/8" | 5/8" | 2-7/16" |
| 103-228 | 5/16" | 3/8" | 3/4" | 2-1/2" |
| 103-230 | 3/8" | 3/8" | 3/4" | 2-1/2" |
| 103-235 | 1/2" | 1/2" | 1-1/4" | 3-1/4" |
| 103-240 | 5/8" | 5/8" | 1-5/8" | 3-3/4" |
| 103-246 | 3/4" | 3/4" | 1-5/8" | 3-7/8" |
| 103-259 | 1" | 1" | 2" | 4-1/2" |
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
