Milwaukee 48-20-7344 5/16"x12" MX4 4-Cutter SDS PLUS Rotary Hammer Drill Bit
Couldn't load pickup availability

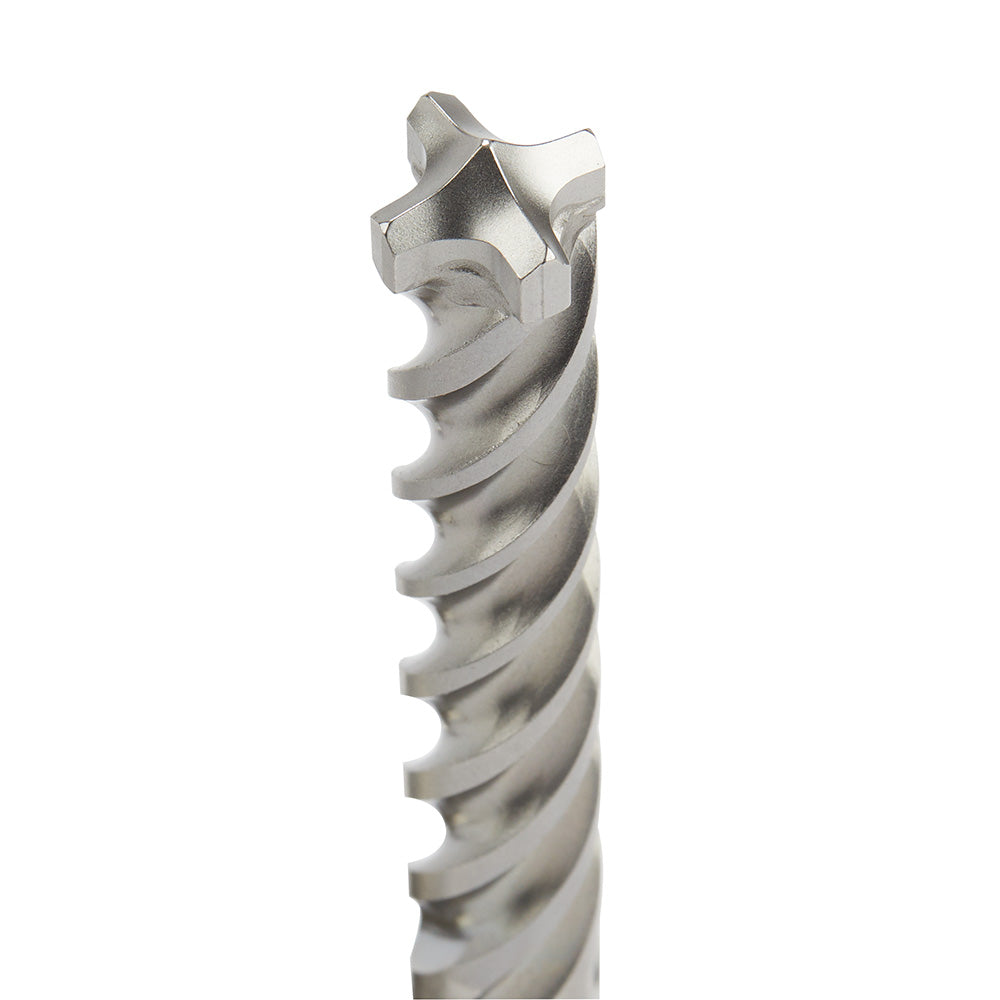

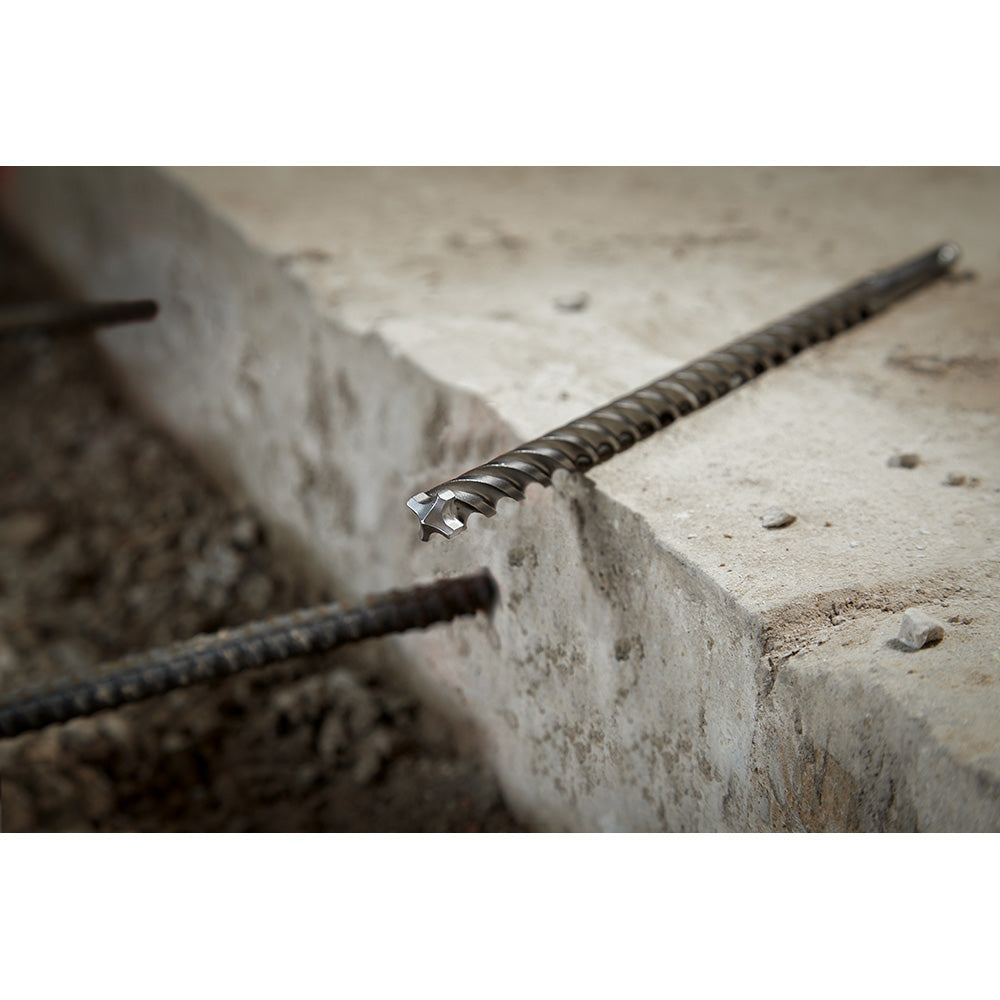

Milwaukee MX4 4-Cutter SDS PLUS Rotary Hammer Drill Bits with solid head carbide deliver up to 5x longer life in concrete with rebar. Engineered with rebar guards to provide maximum durability in hard aggregate and rebar. We designed our MX4 4-Cutter bits with sharp centering tips for exact spot drilling in concrete and metal decking. 4-cutter design prevents lock-up in rebar, reducing downtime. Variable flutes remove dust faster, reducing heat and delivering up to 20% more holes per battery charge. The wear mark indicator on each drill bit shows you when they no longer meet the ANSI requirement. These MILWAUKEE MX4 4-Cutter Drill Bits are ideal for concrete with rebar and masonry applications.

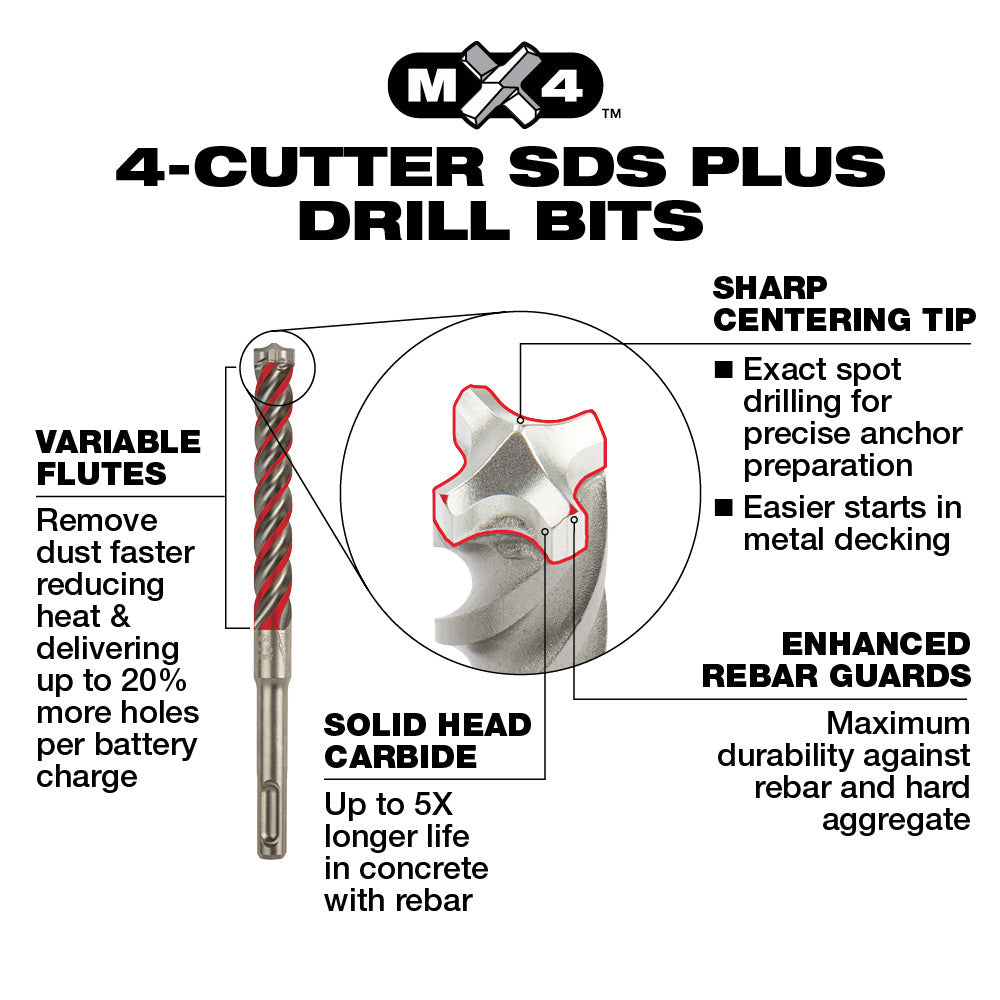

Features:
- Solid head carbide for up to 5x longer life in concrete with rebar
- Rebar guards for maximum durability in hard aggregate and rebar
- Centering tip for exact spot drilling in concrete & metal decking

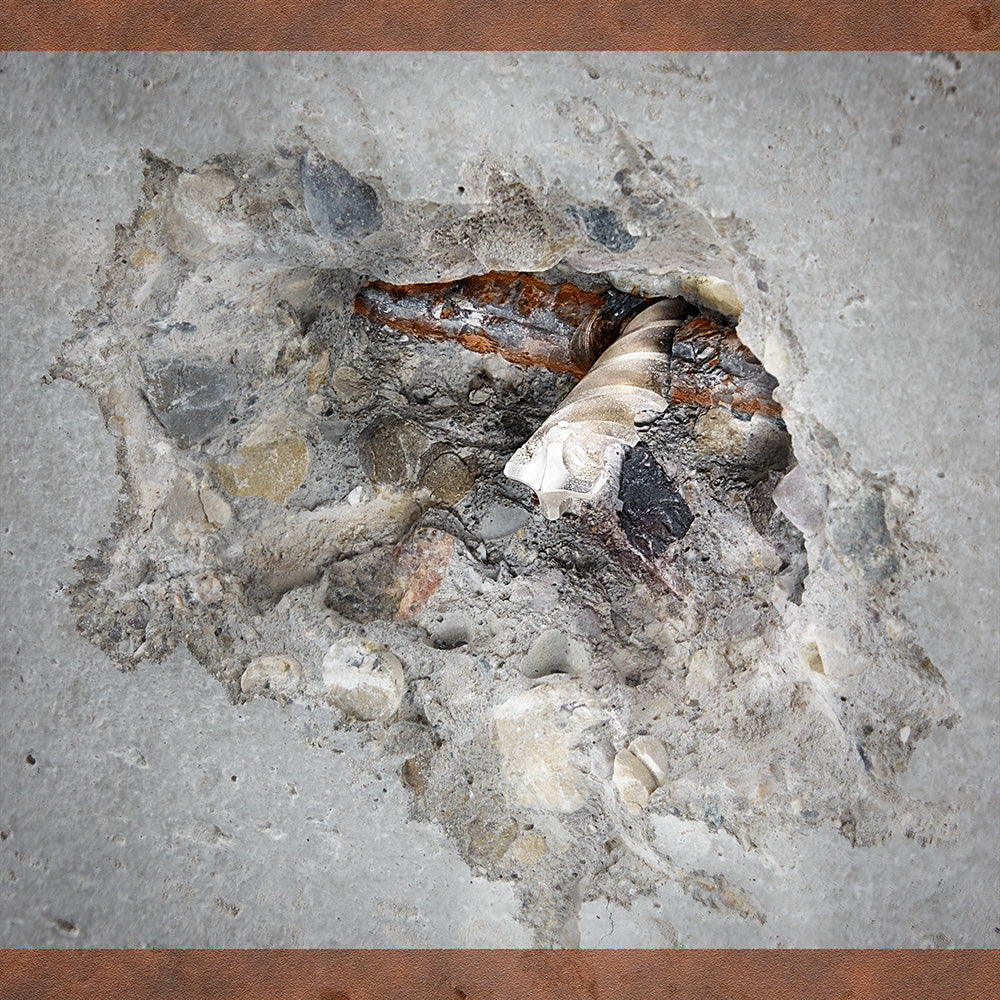

- 4-cutter design prevents lock-up in rebar, reducing downtime
- Variable flutes remove dust faster reducing heat & delivering up to 20% more holes per battery charge
- German Made
- Meets ANSI B212.15 to fit common anchors
- Wear mark indicator to show end of life and when bit no longer meets the ANSI requirement

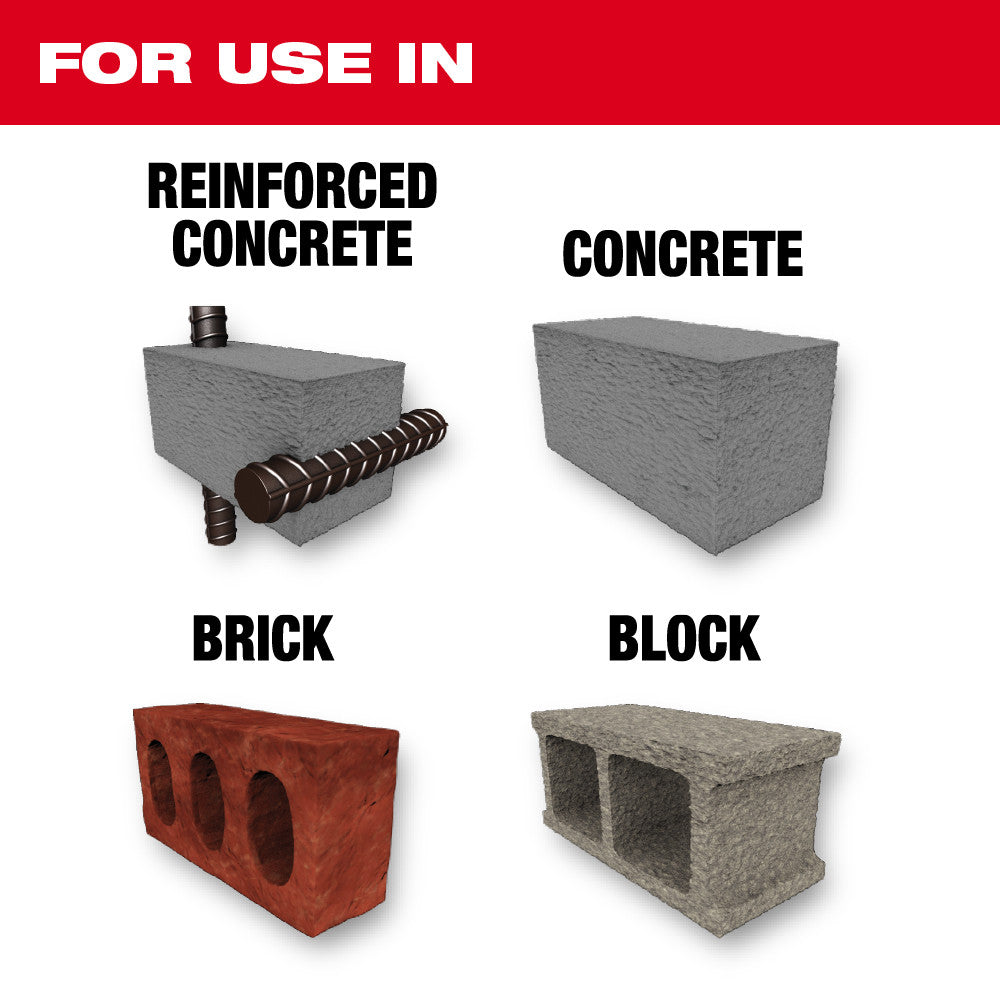

- Ideal for concrete with rebar and masonry

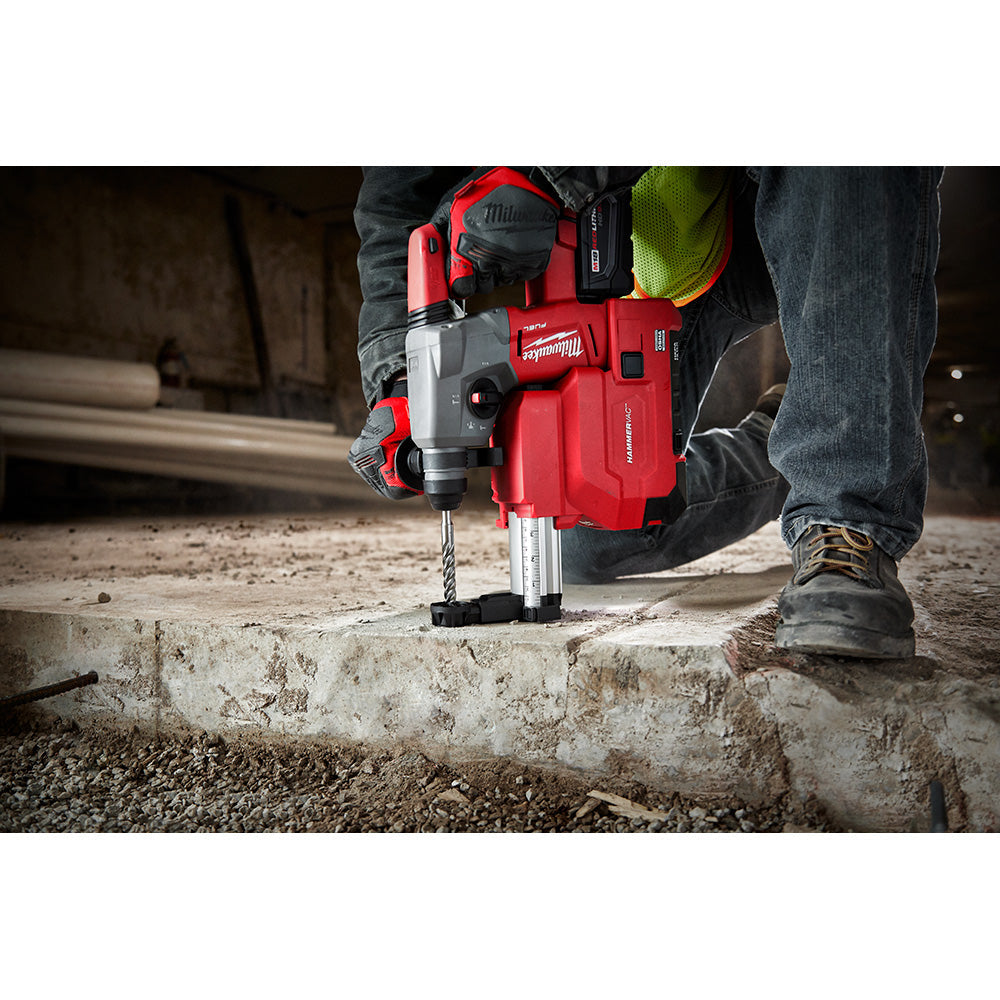

- Fits all SDS-PLUS rotary hammers
Specifications:
- Diameter: 5/16"
- Usable Length: 10"
- Overall Length: 12"
Additional Sizes:
| Part # | Diameter | Usable Length | Overall Length | Pack Qty |
| 48-20-7308 | 5/32" | 4" | 6" | 1 |
| 48-20-7314 | 3/16" | 10" | 12" | 1 |
| 48-20-7310 | 3/16" | 2" | 4" | 1 |
| 48-20-7910 | 3/16" | 2" | 4" | 1 (bulk) |
| 48-20-7910 | 3/16" | 2" | 4" | 15 (bulk) |
| 48-20-7311 | 3/16" | 4" | 6" | 1 |
| 48-20-7911 | 3/16" | 4" | 6" | 1 (bulk) |
| 48-20-7911 | 3/16" | 4" | 6" | 15 (bulk) |
| 48-20-7312 | 3/16" | 6" | 8" | 1 |
| 48-20-7912 | 3/16" | 6" | 8" | 1 (bulk) |
| 48-20-7912 | 3/16" | 6" | 8" | 15 (bulk) |
| 48-20-7335 | 1/4" | 10" | 12" | 1 |
| 48-20-7330 | 1/4" | 2" | 4" | 1 |
| 48-20-7930 | 1/4" | 2" | 4" | 1 (bulk) |
| 48-20-7930 | 1/4" | 2" | 4" | 15 (bulk) |
| 48-20-7331 | 1/4" | 4" | 6" | 1 |
| 48-20-7931 | 1/4" | 4" | 6" | 1 (bulk) |
| 48-20-7931 | 1/4" | 4" | 6" | 15 (bulk) |
| 48-20-7332 | 1/4" | 8" | 8" | 1 |
| 48-20-7334 | 1/4" | 8" | 10" | 1 |
| 48-20-7932 | 1/4" | 8" | 8" | 1 (bulk) |
| 48-20-7932 | 1/4" | 8" | 8" | 15 (bulk) |
| 48-20-7344 | 5/16" | 10" | 12" | 1 |
| 48-20-7341 | 5/16" | 4" | 6" | 1 |
| 48-20-7941 | 5/16" | 4" | 6" | 1 (bulk) |
| 48-20-7941 | 5/16" | 4" | 6" | 15 (bulk) |
| 48-20-7354 | 3/8" | 10" | 12" | 1 |
| 48-20-7954 | 3/8" | 10" | 12" | 1 (bulk) |
| 48-20-7954 | 3/8" | 10" | 12" | 10 (bulk) |
| 48-20-7357 | 3/8" | 16" | 18" | 1 |
| 48-20-7351 | 3/8" | 4" | 6" | 1 |
| 48-20-7951 | 3/8" | 4" | 6" | 1 (bulk) |
| 48-20-7951 | 3/8" | 4" | 6" | 10 (bulk) |
| 48-20-7364 | 7/16" | 10" | 12" | 1 |
| 48-20-7361 | 7/16" | 4" | 6" | 1 |
| 48-20-7374 | 1/2" | 10" | 12" | 1 |
| 48-20-7974 | 1/2" | 10" | 12" | 1 (bulk) |
| 48-20-7974 | 1/2" | 10" | 12" | 10 (bulk) |
| 48-20-7377 | 1/2" | 16" | 18" | 1 |
| 48-20-7371 | 1/2" | 4" | 6" | 1 |
| 48-20-7971 | 1/2" | 4" | 6" | 1 (bulk) |
| 48-20-7971 | 1/2" | 4" | 6" | 10 (bulk) |
| 48-20-7384 | 9/16" | 10" | 12" | 1 |
| 48-20-7387 | 9/16" | 16" | 18" | 1 |
| 48-20-7381 | 9/16" | 4" | 6" | 1 |
| 48-20-7203 | 5/8" | 10" | 12" | 1 |
| 48-20-7206 | 5/8" | 16" | 18" | 1 |
| 48-20-7200 | 5/8" | 6" | 8" | 1 |
| 48-20-7215 | 3/4" | 10" | 12" | 1 |
| 48-20-7220 | 3/4" | 16" | 18" | 1 |
| 48-20-7210 | 3/4" | 6" | 8" | 1 |
| 48-20-7212 | 3/4" | 8" | 10" | 1 |
| 48-20-7236 | 7/8" | 16" | 18" | 1 |
| 48-20-7225 | 7/8" | 6" | 8" | 1 |
| 48-20-7228 | 7/8" | 8" | 10" | 1 |
| 48-20-7240 | 1" | 8" | 10" | 1 |
| 48-20-7256 | 1-1/8" | 16" | 18" | 1 |
| 48-20-7250 | 1-1/8" | 8" | 10" | 1 |
