Home » Alpha Tools BMLS10190DM 29 Piece Blitz-Storm Drill Mug - Mechanics Length
Alfa Tools

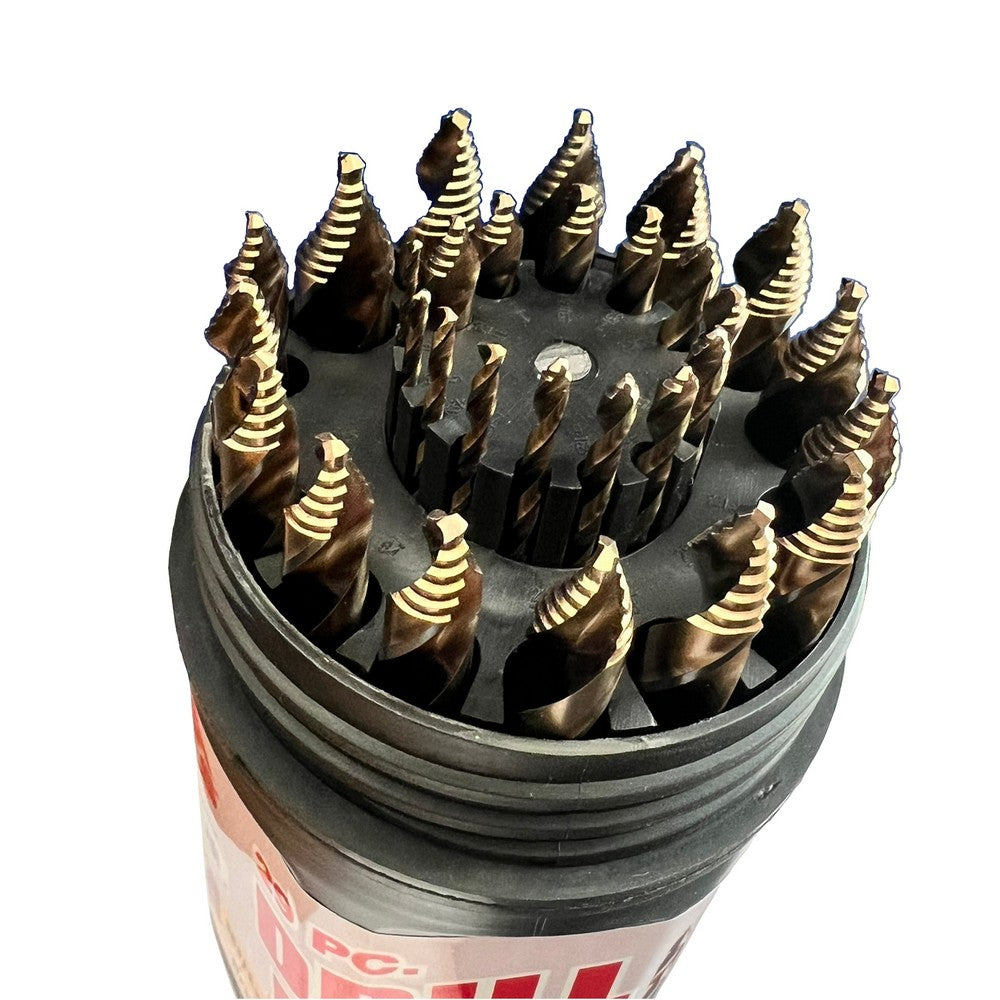

Alpha Tools BMLS10190DM 29 Piece Blitz-Storm Drill Mug - Mechanics Length

SKU: ATBMLS10190DM:EA In Stock
$199.95
Description

Features:

  • Includes Sizes: 1-16" - 1/2" by 64ths
  • Innovative Step Point Geometry
  • Radial chip thinning which greatly reduces heat, prolonging toll life
  • Enlarge holes without damaging the point
  • Low thrust design self-centering 135° split point
  • Used in wide range of materials:
    • Steels
    • Cast Iron
    • Stainless Steel
    • Sheet Metal
    • Non-Ferrous Materials
  • Reduced entry and exit burrs
  • Sturdy Mechanics Length with 3 flats on shank sizes 3/16" - 1/2" for no slipping in the drill chuck
  • 25/64" - 1/2" has 3/8" reduced shank with flats
  • Ideal for both hand and machine drilling
  • M-2 High Speed Steel
  • Black and Gold surface treatment to increase lubricity and reduce friction
  • Works well in both round and flat drilling applications

Additional Blitz-Storm Mechanics Length Drill Bits:

Size Decimal Equiv. Flute Length Overall Length Part #
1/16" 0.0625 7/8" 1-7/8" BMLS10101
5/64" 0.0781 1" 2" BMLS10102
3/32" 0.0938 1-1/4" 2-1/4" BMLS10103
7/64" 0.1094 1-5/16" 2-3/8" BMLS10104
1/8" 0.125 1-7/16" 2-1/2" BMLS10105
9/64" 0.1406 1-9/16" 2-5/8" BMLS10106
5/32" 0.1562 1-11/16" 2-3/4" BMLS10107
11/64" 0.1719 1-13/16" 2-7/8" BMLS10108
3/16" 0.1875 1-7/8" 3" BMLS10109
13/64" 0.2031 1-15/16" 3-1/8" BMLS10110
7/32" 0.2188 2" 3-1/4" BMLS10111
15/64" 0.2344 2-1/16" 3-3/8" BMLS10112
1/4" 0.25 2" 3-1/2" BMLS10113
17/64" 0.2656 2-1/8" 3-5/8" BMLS10114
9/32" 0.2812 2-1/4" 3-3/4" BMLS10115
19/64" 0.2969 2-3/8" 3-7/8" BMLS10116
5/16" 0.3125 2-1/2" 4" BMLS10117
21/64" 0.3281 2-9/16" 4-1/16" BMLS10118
11/32" 0.3438 2-5/8" 4-1/8" BMLS10119
23/64" 0.3594 2-11/16" 4-3/16" BMLS10120
3/8" 0.375 2-11/16" 4-1/8" BMLS10121
25/64" 0.3906 2-3/4" 4-5/16" BMLS10122
13/32" 0.4062 2-13/16" 4-3/8" BMLS10123
27/64" 0.4219 2-7/8" 4-7/16" BMLS10124
7/16" 0.4375 2-15/16" 4-1/2" BMLS10125
29/64" 0.4531 3" 4-5/8" BMLS10126
15/32" 0.4688 3-1/8" 4-3/4" BMLS10127
31/64" 0.4844 3-1/4" 4-7/8" BMLS10128
1/2" 0.5 3-3/8" 5" BMLS10129



Blitz-Storm Mechanics Length Drill Bit Sets:

Qty  Sizes Part #
29 Piece Drill Mug 1-16" - 1/2" by 64ths Drill Mug BMLS10190DM

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
